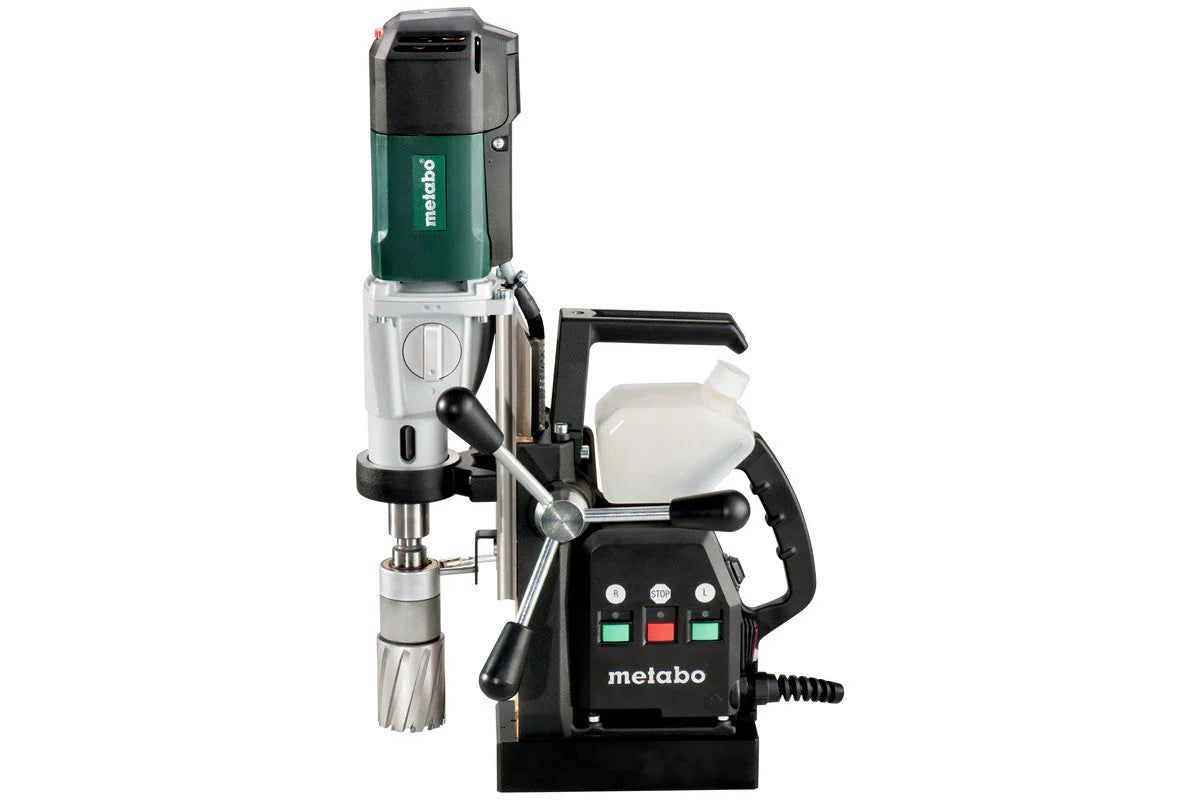

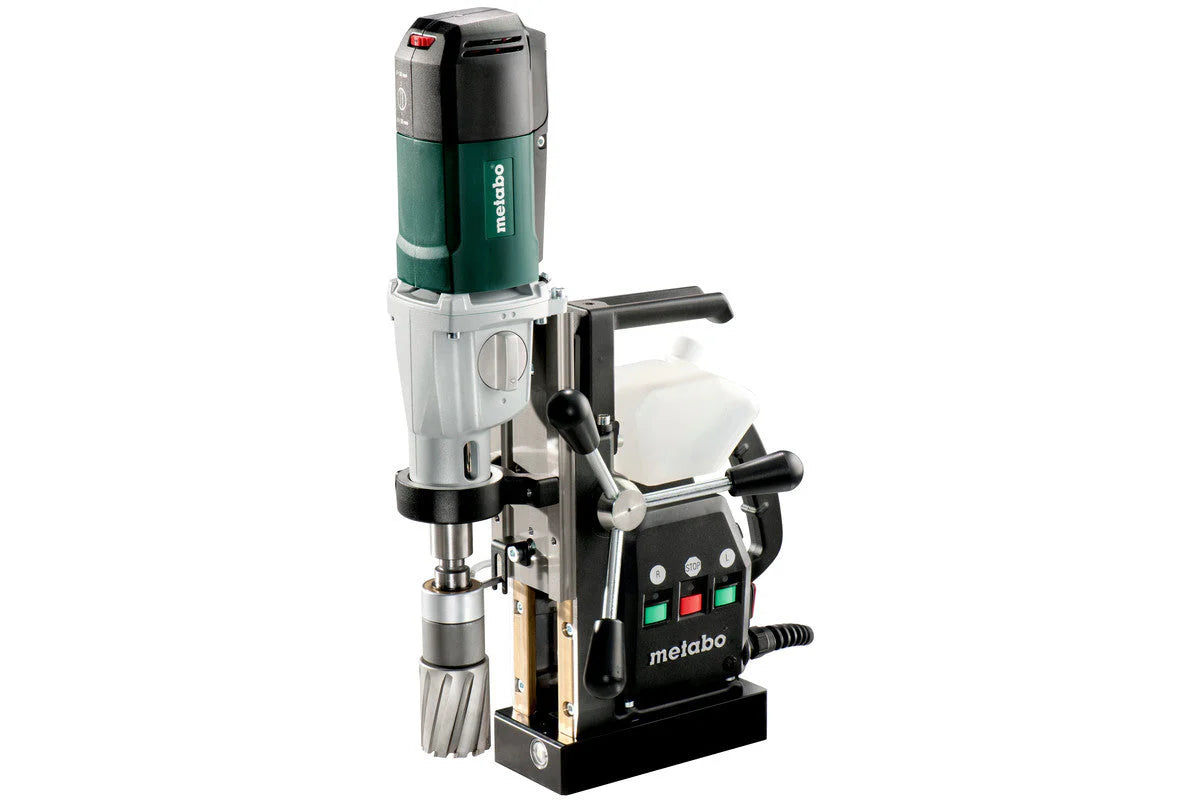

Metabo | Magnetic Core Drill Unit Mag 50

SKU: 600636500
(0)
R 21,875.00
R 21,967.00 R 21,875.00
    Right To Your Doorstep

    Free Shipping in South Africa on orders over R2000.

    Guaranteed secure payments
    Industry leading quality

    Direct Technical Expertise.

    Email 021 987 6543
    • Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks

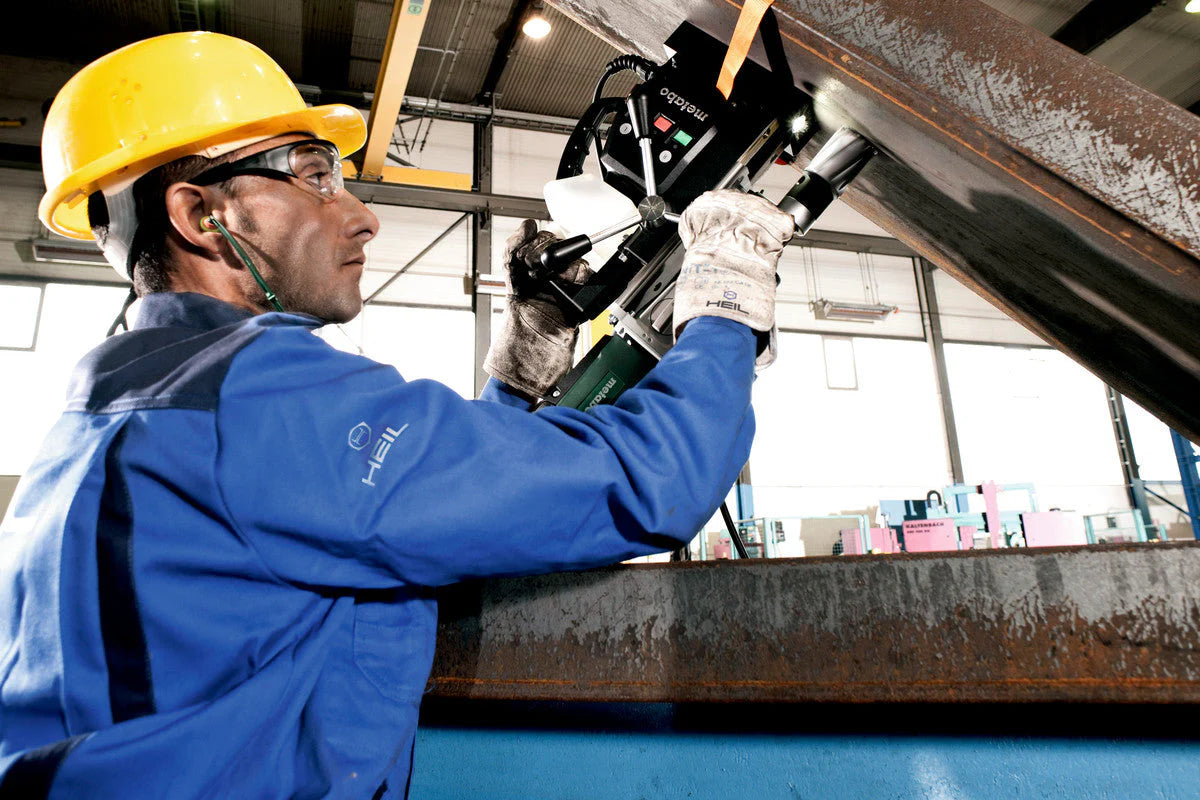

    • Magnetic base with high holding power permits working on vertical surfaces and overhead
    • Robust Metabo marathon motor with internal wiring for long service life
    • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
    • Clockwise/anti-clockwise rotation with thread cutter
    • Durable two-speed gearbox with oil bath lubrication for ideal speeds
    • Integrated coolant container for easy to dose internal cooling of the core drill
    • Bright LED light for easy alignment in poor light conditions
    • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
    • Protective circuit starts motor only if the magnet is activated
    • Overload protection: protects the motor from overheating
    • Restart protection: prevents unintentional start-up after power supply interruption
    • Lockable slide for comfortable tool change
    • Handle for easy carrying and lifting
    • Resistant mains cable (5m) with rubber shroud

    Included

    • Industrial holder for Weldon shank 19mm
    • Ejector pins 75 and 100mm
    • MK2 drift key
    • Safety strap
    • Hexagon socket wrench SW5
    • Swarf protection guard
    • Transport case

    Specifications

    • Rated input power: 1200W
    • Output power: 620W
    • Max. drill-Ø with core drill: 50mm
    • Max. drill-Ø with spiral drill: 20mm
    • Maximum drilling depth: 50mm
    • Thread cutting: M16
    • No-load speeds: 100 - 250 / 200 - 450rpm
    • Speeds at rated load: 250 / 450rpm
    • Bit retainer: Morse taper MK 2 / Weldon shaft 19mm (3/4")
    • Weight: 12.7kg
    • Cable length: 5m
    • Torque: 90 / 50Nm
    • Max. depth of feed: 160mm
    • Max. magnetic holding force: 12250N
    • Dimensions of the magnet base: 90 x 190mm
    • Height carriage lowest position: 457mm
    • Height carriage topmost position: 610mm
