305mm Sliding Compound Mitre Saw
The DEWALT DWS780 is robust, accurate, and has a very big cutting size capacity. The DWS780 305mm mitre saw cuts up to 345mm wide board, and mitres up to 60° on the right and 50° on the left for unbelievable versatility. Its portability makes it a top choice for carpenters, deck builders and set builders who want maximum capacity on the jobsite.
- Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303mm

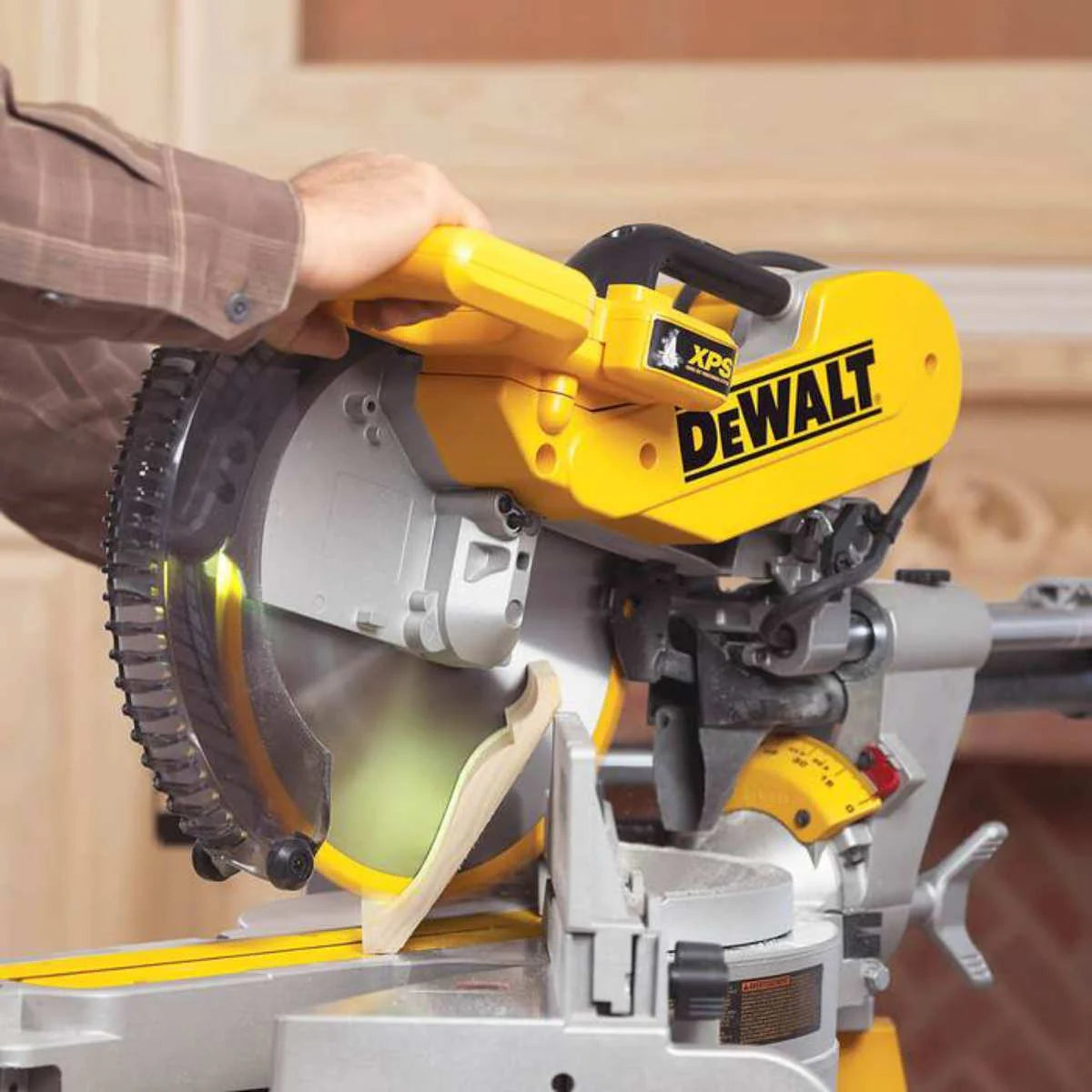

- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the workpiece for increased productivity no adjustment required
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right
- Long life accuracy in table and fence design
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345mm wide
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
- Outstanding dust control and deflection away from cutting area
- Electronic speed control for adjusting cutting speed when cutting materials other than wood
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
Included
- 1x Mitre saw, 2x Base extensions and installation hardware, 1x Blade wrench , 1x Saw blade, 1x Dustbag, 1x Material clamp
Specifications
-
Rating: Industrial
-
Power input: 1675W
-
Blade diameter: 305mm
-
Blade bore: 30mm
-
No-load speed: 1900 - 3800rpm
-
Max. blade thickness: 1.8mm
-
Max. kerf of the saw blades: 3mm
-
Max. cross-cut capacity 90°: 349mm
-
Max. mitre capacity 45°: 244mm
-
Max. depth of cut 90°: 112mm
-
Max. depth of bevel cross-cut 45°: 56mm
-
Mitre (max. positions) left: 50°
-
Mitre (max. positions) right: 60°
-
Bevel (max. positions) left: 49°
-
Bevel (max. positions) right: 49°
